Increasing flexibility … Choose from our CAD Flexi series.
Most suitable for small plants with space or height constraint…
Cadetronics offers Gravimetric and Volumetric solutions for packaging Free flowing liquids.
Our standard models cater to accommodate SKUs ranging from 50 ml to 200 Ltr Barrels.
- Simple and easy to operate
- Easy changeover
- Portable
To view our Automatic Packaging Solutions click here.
Ex proof Models are available on request.
Standard Models include:
Weighmetric Liquid Packaging (Semi auto)
| Liquid Filler Unit Model: WFM-120 |
|---|
A simple gravimetric solution with two stage plunger type cut-off for precised, accurate filling. Catering SKUs from 0.5 Ltr to 4 Ltr or 1 kg to 5 Kg. Most prefered option to fill shades with easy cleaning. Model WFM –R120 is available with replacable tank option.
Suitable for:

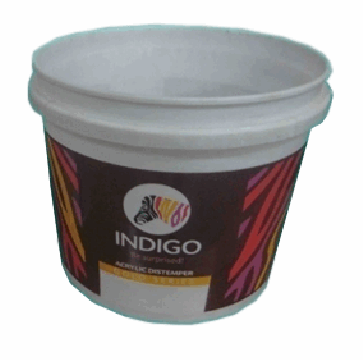

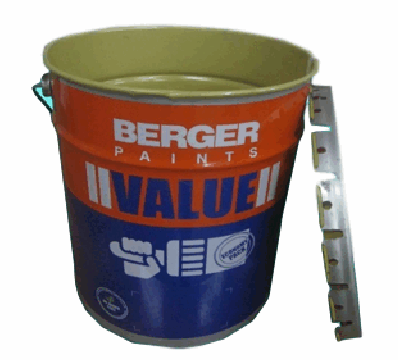

Container: (Open Mouth) |

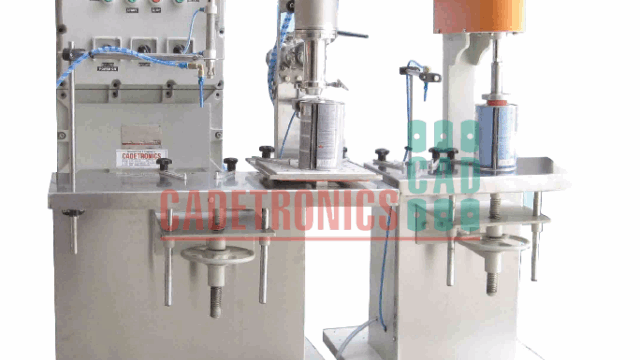

| Liquid Filler Unit Model: WFM-110 |
|---|
Can be combined with Plug press / Cap Sealer / Cap tightener Additional features with N2 purging can be supplied. A simple tubless gravimetric solution with two stage plunger type cut-off for precised, accurate filling. Catering SKUs from 250 ml to 5 Ltr. Most prefered option to fill solvents with easy cleaning. Model WFM –R110 is available with attached tank option.
Suitable for:

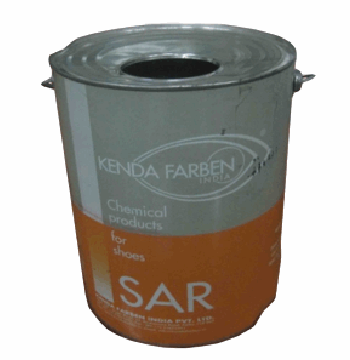

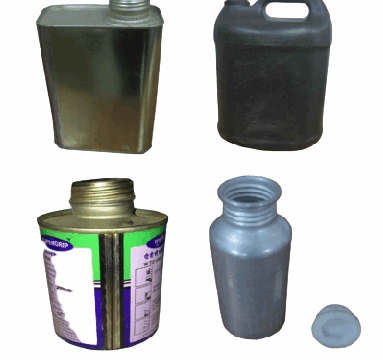

Container: (Narrow Mouth) |

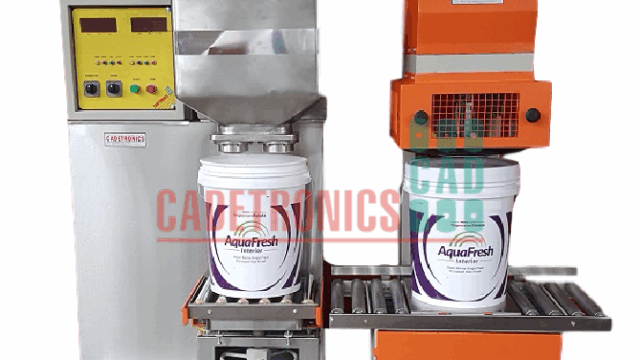

| Liquid Filler Unit Model: WFM-130 |
|---|
A simple gravimetric solution with two stage plunger type cut-off for precised, accurate filling. Catering SKUs from 4 to 20 Ltr. Or 1 USG to 5 USG. Most prefered option to fill shades with easy cleaning. Model WFM –R135 is available with replacable tank option.
Suitable for:
Container: (Open Mouth/ 4” Mouth) |
| Liquid Filler Unit Model: WFM-130 |
|---|
Can be combined with Split type Lidpress or Crimping Unit. A simple gravimetric solution with three stage plunger type cut-off for precised, accurate filling at a faster speed. Catering SKUs from 4 to 20 Ltr. Or 1 USG to 5 USG. Most prefered option to fill shades with easy cleaning. Model WFM –R130 is available with replacable tank option.
|
| Liquid Filler Unit Model: WFM-133 |
|---|
Can be combined with Plug press / Cap Sealer / Cap tightener / Crimper Unit Additional features with Bypass arrangement in the fill valve can be supplied. A simple tubless gravimetric solution with two stage plunger type cut-off for precised, accurate filling. Catering SKUs from 5 to 20 Ltr. Or 7.5 Kg to 30 Kg. Most prefered option to fill shades with easy cleaning. Model WFM –A133 is available with attached tank option.
Suitable for:
Container: (Narrow Mouth) / (Open Mouth) |
| Model: CAD22RW |
|---|
A simple gravimetric solution with two stage plunger type cut-off for precise, accurate filling. Twin Head Filler combined with Twin Head Lidpress allows to pack at a faster speed. Catering SKUs from 0.5 Ltr to 4 Ltr or 1 kg to 5 Kg. Most preferred option to fill shades with easy cleaning. Model CAD22RW-R is available with replaceable tank option.
Suitable for:
Container: (Open Mouth) |
| Model: CADW6BW-R |
|---|
A simple gravimetric solution with two stage plunger type cut-off for precise, accurate filling. Single Head Filler with Pre-fill combined with Single Head Lidpress allows to pack at a faster speed reducing ergonomic load. Catering SKUs from 10 Ltr & 20 Ltr or 5 USG. Most preferred option to fill shades with easy cleaning. Model CAD6BW-R is available with replaceable tank option.
Suitable for:
Container: (Open Mouth)
|
| Model: CAD3BW |
|---|
Can be combined with Cap Tightener Unit A simple gravimetric solution with two stage plunger type cut-off for precise, accurate filling. Three Head Filler allows to pack narrow (2” Mouth Opening drums) as well as Open mouth drums. Catering SKUs from 5 Ltr & 20 Ltr or 1 USG & 5 USG. Most preferred option to fill thinners with easy cleaning.
Suitable for:
Container: (Narrow Mouth) |
Volumetric Semi auto machines
| Twin Head Liquid Filler Unit Model: VFM-210 |
|---|
Can be combined with Lid Press Machine A simple volumetric solution with syringe based filling for faster packing and drip free cut-off. Catering SKUs from 50 ml to 250 ml. Most preferred option to fill small pack-sizes. Model VFM –210AS is available to fill SKUs from 500 ml to 1 Ltr with additional syringe.
Suitable for:
Container: (Open Mouth / Narrow Mouth) |

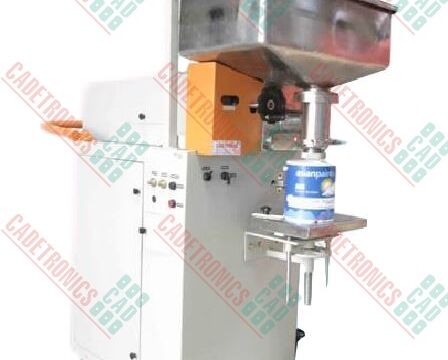

| Liquid Filler Unit Model: VFM-220 |
|---|
Can be combined with Lid Press Machine A simple volumetric solution with syringe based filling for accurate, faster packing and drip free cut-off. Catering SKUs from 0.5 Ltr to 4 Ltr or 1 USG. Model VFM –220M is available to fill 20 Ltr or 5 USG with Multi-stroke.
Suitable for:
Container: (Open Mouth) |

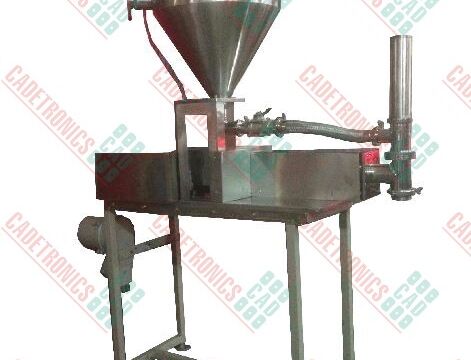

| Volumetric Paint Doser : VFM-100 |
|---|
It is a dosing solution to add colour doses as per set time interval from 100 ml to 1 Ltr. Suitable for:
Container: (Open Mouth) |
| Model: CAD22RW |
|---|
A simple volumetric solution with syringe based filling for accurate, faster packing and drip free cut-off. Catering SKUs from 0.5 Ltr to 4 Ltr or 1 USG. Twin Head Filler combined with Twin Head Lidpress allows to pack at almost double speed. Catering SKUs from 0.5 Ltr to 4 Ltr or 1 kg to 5 Kg.
Suitable for:
Container: (Open Mouth) |
Barrels

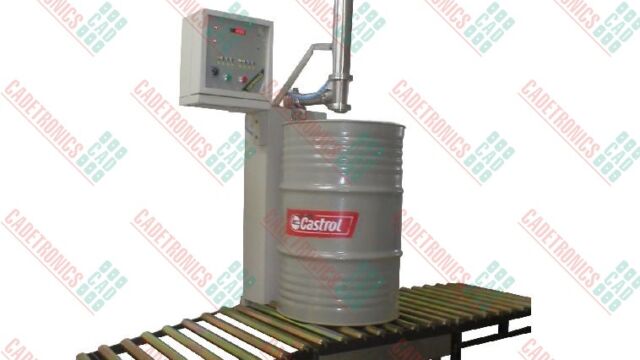

| Liquid Filler Unit Model: WFM-500 having Bypass arrangement |
|---|
Model: WFM -500D Available with Diving Arrangement for foaming liquids
A simple gravimetric solution with plunger type cut-off for precise, accurate filling. Catering SKUs 200 Ltr. Most preferred option to fill lube oil or liquids with foaming characteristics.
Suitable for:
Container: (Narrow Mouth) |

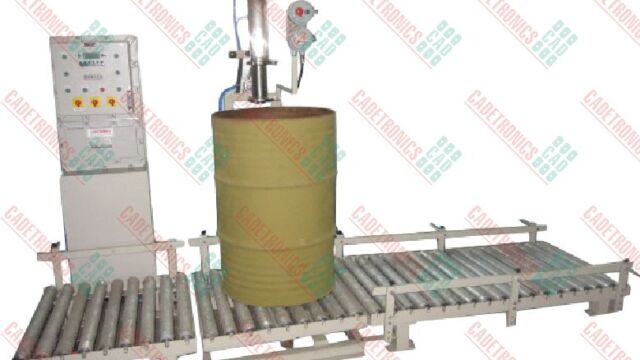

| Liquid Filler Unit Model: WFM-550 |
|---|
Model: WFM -550D Available with Diving Arrangement.
A simple gravimetric solution with plunger type cut-off for precise, accurate filling having Bypass arrangement. Catering SKUs 20 Ltr. to 200 Ltr. Most preferred option to fill lube oil or liquids with foaming characteristics.
Suitable for:
Container: (Narrow Mouth) |

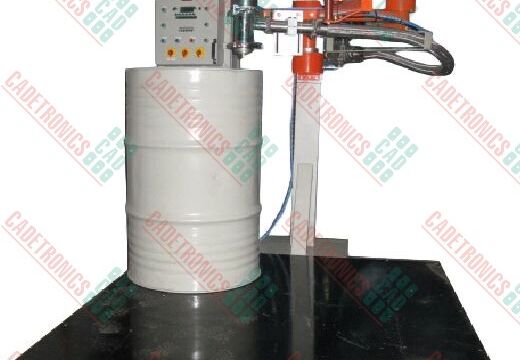

| Liquid Filler Unit Model: WFM-570 having Bypass arrangement |
|---|
Filling 4 x 200 Ltr. Barrels on a Pallet Model: WFM -570D Available with Diving Arrangement for foaming liquids
A simple gravimetric solution with plunger type cut-off for precise, accurate filling. Catering SKUs 200 Ltr having bypass arrangement. Most preferred option to fill lube oil or liquids with foaming characteristics.
Suitable for:
Container: (Narrow Mouth) |
